What are the characteristics of the air suction type and air blowing type automatic screwdriver machines? What is the difference between the air suction type and air blowing type automatic screwdriver machines? Many consumers have this question now. When purchasing an automatic screw - locking machine, is it best to buy a air suction type automatic screwdriver machine? Next,TBT-TECH will explain it to us!
Most importantly: the characteristics and application scopes of the air suction type and blowing type.
The air blowing type mainly refers to the feeding of the coordinate type automatic screw machine, which is also one of the two most common feeding methods of the coordinate type automatic screw machine. With the development of technology, the air blowing type feeding method of the automatic screw machine is more advanced. It can complete the processes of feeding, inspection, selection, and fastening together, greatly saving the time and power of fastening. The air suction type feeding and fastening are operated by feeding through the placement machine respectively, and then tightened with a z - axis electric screwdriver, and then fastened. In this process, each screw must be sucked before it can be fastened, and the efficiency will be very low.

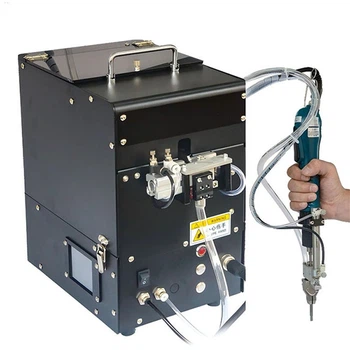

However, there are still some manufacturers in the market that produce the air suction type screw fasteners (limited to coordinated screw fasteners) and multi - axis screwdriving machines and handheld screwdriver machines that use advanced air blowing type feeding.
Act now – contact us for professional automation solutions.
Email: Johan@tbeite.com WhatsApp: 0086 14776828717
Since these two feeding methods have been sold on the market, it indicates that both methods have value. The differences between the air suction coordinate screw machine and the air blowing coordinate screw machine are analyzed, so that customers can choose equipment that suits their own production requirements when purchasing.

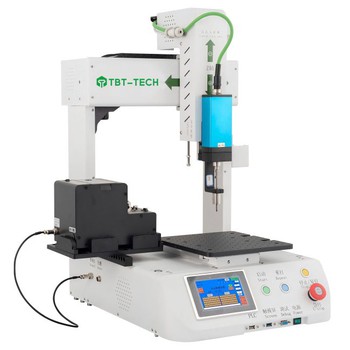

I. Air suction type three coordinate screwdriver drill machine.
Working principle: The suction coordinate screwdriver machine is composed of a screw positioning machine and a coordinate unit. In the program, a special controller is selected for the single - chip microcomputer. When the screwdriver machine sends out a signal for the screw, the screw is taken from the coordinate machine and pick up repeatedly.
Advantages:
Low cost. The suction type screwdriver machine is formed by combining two independent and maturely developed independent mechanisms with low costs.
Within a limited range, it can meet the general use of several different screws. The screw machine can be adjusted within a limited application range.
Disadvantages:
Due to its low power, it takes a long time to repeat the screwing process, so its application is limited.
1. The arranging machine can only be used for screws between M1 to M4, and cannot stably feed big screws.
2. The hopper is small, and the screws need to be rotated frequently.
3. Ordinary screw fastening is only applicable to leveling products. Because the air suction type is selected, products with screw holes on curved and irregular surfaces cannot operate stably, especially some special screws, long screws, and large screws.

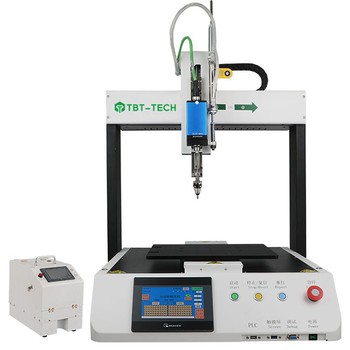

II. Air Blowing Coordinate Automatic Screwdriver Machine
Working Principle: After selection, placement, and testing, screws are transferred to the fastening port of the coordinate screw machine through an active spiral feeder. Then, the coordinate screw machine tightens the screws according to the set program. It is controlled by PLC, which can transport and tighten screws simultaneously. After startup, it can continuously tighten screws.
Advantages:
High power: Since the screws are fed and tightened by the air blowing method, the time to obtain screws is saved. This device only needs to tighten each screw hole step by step. It can be equipped with a dual - electric drive, handling two screws at a time, making it more powerful.
Applicable to various products: Such as curved - surface products, deep - hole screws, and countersunk screws. According to your needs, you can set multiple screw fastening schemes, which are suitable for businesses with various product types.
Suitable for a wider range of screw and torque requirements: Especially for slightly larger screw products.
Disadvantages:
The air blowing automatic screwdriver machine is designed according to the characteristics of screw and product. The screws need to ensure a length - diameter ratio of 1:1.3 to be used.
Scope of application: Suitable models, high production requirements, and strict production standards
