Automatic Screw Driving Machine

The automatic screw tightening machine is primarily composed of a screw automatic conveying system, an x-y-z movement platform, a control system, and a fastening system. Its work efficiency is significantly higher than that of traditional manual work. When the screwdriver lifts up after locking one screw, another screw is already air-blown to the driver for the next locking operation. The machine can operate continuously, especially suitable for multiple items of the same size. This series of screwdriver machines is applicable to M1-M8 screws and is mainly used in industries such as sockets, switches, LEDs, valves, toys, automobiles, household appliances, and the 3C industry, etc.

Intelligent Servo screwdriver system

Automatic screw feeding system

Automatic control system

◆ Feeding and Fastening

1. Efficient Feeding

Blow Feeding: No need to pick up screws, high efficiency.

2. Versatile Fastening Surfaces

Can fasten screws on surfaces with different heights, including deep holes, inclined holes, curved surfaces.

3. Multiple torque functions

Intelligent electric screwdriver supports 4 different torques for one product and combines two processes (stop after one process, install accessories, then start another process).

◆ Equipment Performance

1. Intelligent Servo Electric Screwdriver

Fast speed, high precision, low noise, long life, maintenance-free. Torque and speed can be set on the touch screen.

2. Robust Structure

Sheet metal frame with high rigidity. Large Z-axis axis strong compatibility for products of different heights.

3. High-Precision Motor

Closed-loop stepper motor with high precision, position compensation, and no missing steps.

◆ Advanced Control System

Equipped with self-developed motion control card, simple programming with drag-and-drop option.

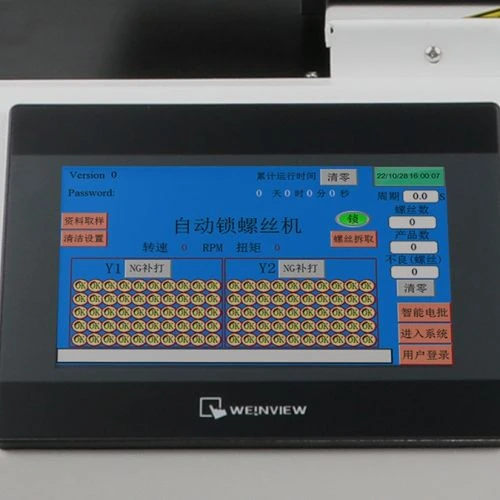

◆ Interactive Touchscreen

Displays fastening status, screwdriver speed and torque in real time.

◆ High Efficiency Operation

Single-head dual-railsm air shooting type, large fastening range, alternate operation left and right, double the efficiency of vacuum suction.

• Cost Reduction: One-person operation for efficiency equivalent to 3 - 5 people, slashing labor costs.
• High Efficiency: Customizable Z-axis screwdriver quantity, multiple screwdrivers work simultaneously.
• Easier Work: Single worker with single equipment, just loading/unloading, reducing labor intensity.
• Reliable Operation: Automatic alarm system, working over 20 hours.
• Good Image: Intelligent equipment gives a new look to the production line, building a high-tech image.
• Customization: Robot customizable according to product assembly requirements.

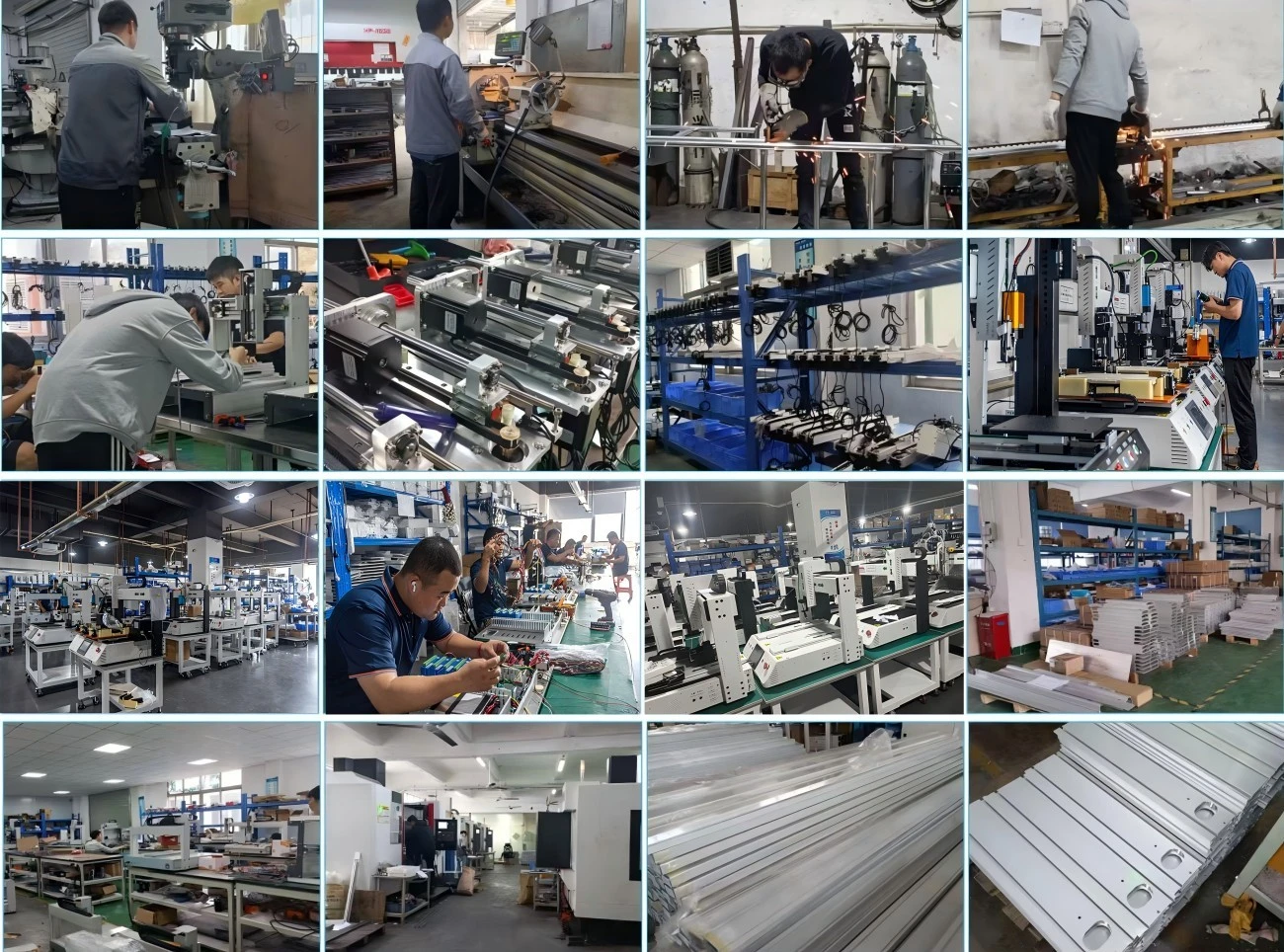

From R&D and design to batch processing of parts and then to batch assembly of equipment, we provide one-stop equipment production management. In terms of batch equipment production, we have more advantageous prices and a faster delivery cycle than our peers.

The screw fastening machine is equipped with the air shooting type screw feeding system. This feeding mechanism directly transfers the screws to the nozzle, without picking-up screws from the feeder, which greatly improves the fastening efficiency. and can be applied to various types of screws, such as cross-head screws, Torx screws, inner-hexagon screws and slotted screws, etc.

Packing Size: 100X80X100MM, weight: 120KG, the normal package is plywood box (Size: L*W*H).

Lead time 7-10 working days after the order confirmed.

Are you the factory or trading company?

We are the manufacturer. If you have an interest in us, please feel free to contact me.

Do you provide free training for using and installing the machine?

Yes, our technical personnel can provide online training as requested. Customers can contact us at any time for any technical issues. Our engineer team is available to provide support at any time if needed.

If we come to your factory, will you provide the free training?

Yes, you are warmly welcome to visit our factory. We will arrange free training for you.

Can you produce according to the samples?

Yes, we can customize according to your samples or technical drawings.

Do you test all your goods before delivery?

Yes, we conduct 100% testing before delivery.
