Product Description

product-637-700

1. For the stepped-type feeding system with the characteristics of small screws and capacity, screws can be discharged smoothly.
2. The screw outlet sorting adopts cylinder transmission, and the number of screw pipes can be independently switched. The blanking belt is equipped with an annular detection switch to identify whether the screw enters the progress pipe.
3. The whole screw machine adopts direct-vibration transmission, uses AirTAC or SMC pneumatic components, and the system adopts an all-in-one touch machine.
4. Touch-screen window functions: screw channel selection, screw counting, vibration debugging, feeding speed, feeding delay, vibration delay, blowing time, etc.
5. Provide external signal lines, start signal, completion signal, and alarm signal.

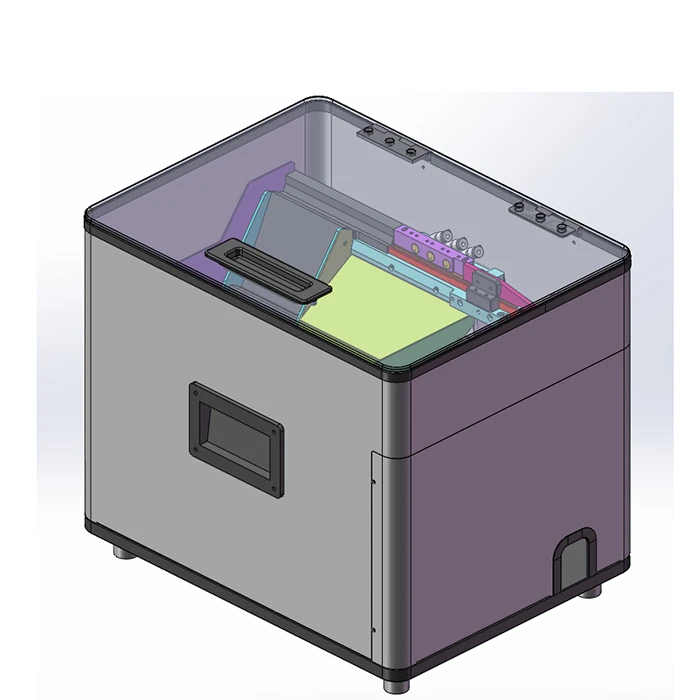

Step feeder

1. For the stepped-type feeding system with the characteristics of long screws and capacity, screws can be discharged smoothly.
2. For the material distribution at the screw outlet, a screw rod + motor transmission or cylinder transmission is adopted. The number of screw-discharging pipes can be independently switched. The blanking belt is equipped with an annular detection switch to identify whether the screw enters the pipeline.
3. The blowing screw machine as a whole adopts direct-vibration transmission, with AirTAC or SMC pneumatic components, and the system adopts an all-in-one touch machine.
4 Functions of the touch-screen window: screw channel selection, screw counting, vibration debugging, feeding speed, feeding delay, vibration delay, blowing time, etc.
5. Provide external signal lines, start signal, completion signal, and alarm signal.

Equipment Parameters

Model	AS-120	AS-180
Dimensions	200W251H330mm	L300W400H383mm
Weight	15KG	30KG
Input voltage	AC100V-240V (50/60HZ)	AC100V-240V (50/60HZ)
Output voltage	DC24V	DC24V
Applicable screws	M1.4-M4.0mm, Total screw length>1.3 times of cap diameter, total length<25mm	M2-M6mm, Total screw length>1.3 times of cap diameter, total length<50mm
Line protection	Overload shutdown	Overload shutdown
Feeding speed	50 to 100 pieces per minute	50 to 100 pieces per minute
Failure rate	Within 3 PCS per 10,000	Within 3 PCS per 10,000
Feeding hose	3-10 meters	3-10 meters
Screw capacity	1.2L	2L
Loading method	Step push type	Step push type

Dimension

product-776-522

Product Features

Utilizing a PLC integrated touch machine, it is applicable to M2 - M6 screws with a length within 50mm.
For clean feeding, the hopper has no vibration source, resulting in less friction with the screws. It is not prone to generating debris and causes minimal damage to the screw surface, enabling clean-type feeding.
The low nail jamming rate is achieved as the mechanical structures of the stepped feeding, V-shaped pushing track, feeding track, and dispenser have been newly upgraded, significantly reducing the probability of nail jamming.
Optional accessories include an electric door lock, cleaning module, long and short nail detection module, and supplementary bin.
Multi-channel management is supported, enabling screw channel selection and rapid switching through IO commands.
Diversification is realized by supporting the feeding of bolts, rivets, nuts, and pins. It is designed according to workpieces for stable output.
