Pulse Hot Press Soldering Machine

Pulse hot pressure soldering also known as Haba soldering, is referred to as Haba machine (HotBar soldering) in the industry. However, most people in the industry commonly call it simply: Haba (HotBar). The principle of HotBar is as follows: first, the solder paste is printed on the circuit board (PCB). After passing through the reflow oven, the solder paste is melted and pre-soldered on the circuit board. Then, the object to be soldered (usually FPC) is placed on the circuit board that has been printed with the solder paste. Subsequently, the hot pressing head is utilized. The heat generated will melt the solder and connect the two electronic components that need to be connected. Because a long thermal head is employed to solder the flat object to be soldered (usually FPC) on the circuit board, it is named HotBar. HotBar is typically used to solder a flexible board (FPC) on the PCB, enabling the achievement of the goals of being light, thin, short, and small. In addition, the cost can be effectively reduced as 1 to 2 flexible board connectors can be dispensed with. The principle of the general HotBar hot press machine and the Haba machine is to utilize the substantial Joule heat generated when a pulse current (pulse) passes through materials with high resistance properties like molybdenum and titanium to heat the hot press head (thermodes/heater tip). Then, the solder paste already on the PCB is heated and melted by the thermal head to attain the purpose of mutual welding. Since it is heated by a pulse, the control of the energy and time of the pulse is of great significance. The control method involves using the thermocouple circuit at the front end of the thermal indenter to feed back the temperature of the thermal indenter to the power control center in real time, thereby controlling the signal of the pulse to ensure the accuracy of the temperature on the thermal head.

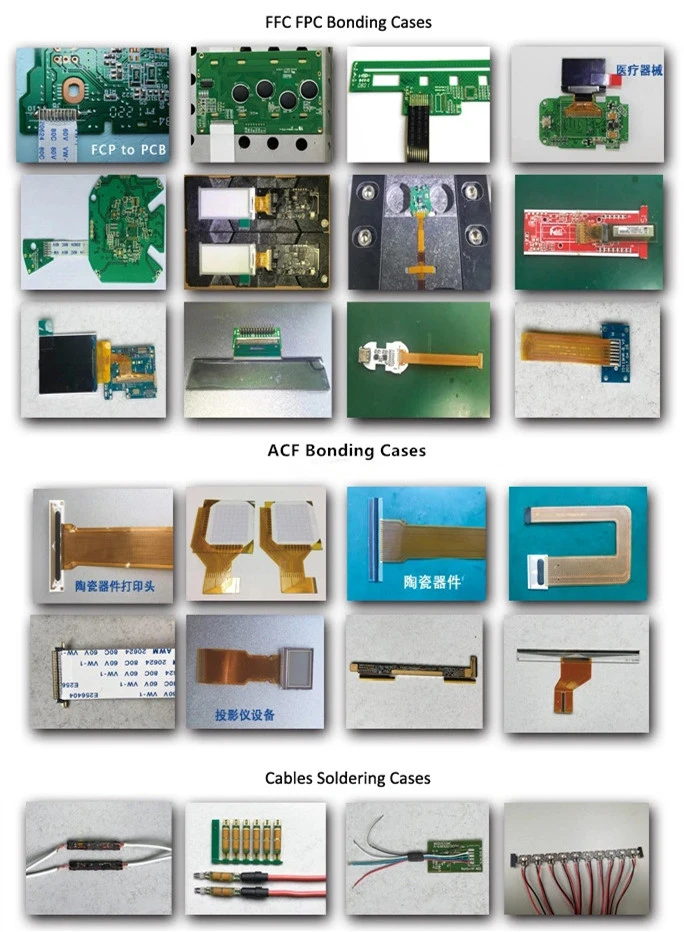

• Wire Soldering
• Soft PCB FPC Soldering
• Soft wire FFC Soldering

1. The device is controlled by a 4.3-inch integrated intelligent control system, and the Chinese/English bilingual interface is switched at will.

2. The operation interface is simple and intuitive, easy to understand.

3.Through manual, automatic two kinds of mode free control, operation is simple, stable and reliable.

4. Use hd camera +15 inch HD display screen to assist alignment.

5. The built-in Japanese RKC thermostat controls the temperature accurately.

6. Japanese SMC digital display pressure control, welding pressure can be set accurately.

7. According to the sample customization scheme, welding head and mould customized design, to ensure the welding effect and yield.

1. The equipment adopts the instant processing temperature which can be set (0-600 degrees) to achieve the purpose of welding products in an instant to cool down.

2. The cutter head of the product can be customized with 0-45mm molybdenum alloy cutter head.

3. The product fixture is customized according to customer samples.

Tbeite Technology Limited is a high-tech enterprise that specializes in the research and development, production, and sales of performance automatic equipment. The company is dedicated to offering customers high-quality and innovative products and services. It mainly concentrates on Automatic Screwdrivers, Automatic Screw Feeders, Automatic Fluid Dispensers, Automatic Riveters, soldering machine and some related automatic equipment.

After-sales service is not the end, but the starting point of our eternal companionship. We are online 24 hours a day, on standby at all times, just like a guardian star, escorting you throughout your usage journey.

All the machines are with safety packing by plywooden case, solid packing ensures that the machine will not be damaged in transit.
