Product Automatic Riveting Video
Equipment description
1. The automatic rivet press machine is designed with a vibrating plate for rivet feeding and a servo electric cylinder for riveting.
2. Manually place the product on the fixture; after startup, the clamping mechanism will hold the product tightly, and the servo platform will rotate to the riveting position. The vibrating plate feeds rivets to the rivet separating mechanism, which blows the rivets to the chuck via air pressure. After the chuck receives the rivets, the electric cylinder will press down and drive the chuck to the riveting position. Once 8 rivets on the outer ring are riveted, the air cylinder will push out the platform to complete the riveting of the middle rivet. Then the clamping mechanism will open automatically, and the operator can take out the finished product and place a new one.
3. The riveting efficiency is approximately 30 seconds per product.
4. This automatic rivet press machine adopts a sheet metal and machining structure to ensure stability and firmness. It uses a servo motor and air cylinder system to guarantee the precision of equipment movement and riveting.
product assembly demand
Products to be assembled
The products to be assembled are mainly PCB boards, base plates, and 9 hollow rivets.
Finished product
The product and substrate are fixed onto the machine platform using a custom fixture. The machine then automatically feeds and presses the hollow rivets into the substrate, securely fastening the substrate and PCB together.
Products assembly details
Rivets Feeding System
The vibrating plate blows the rivets to the chuck one by one
Riveting Machine

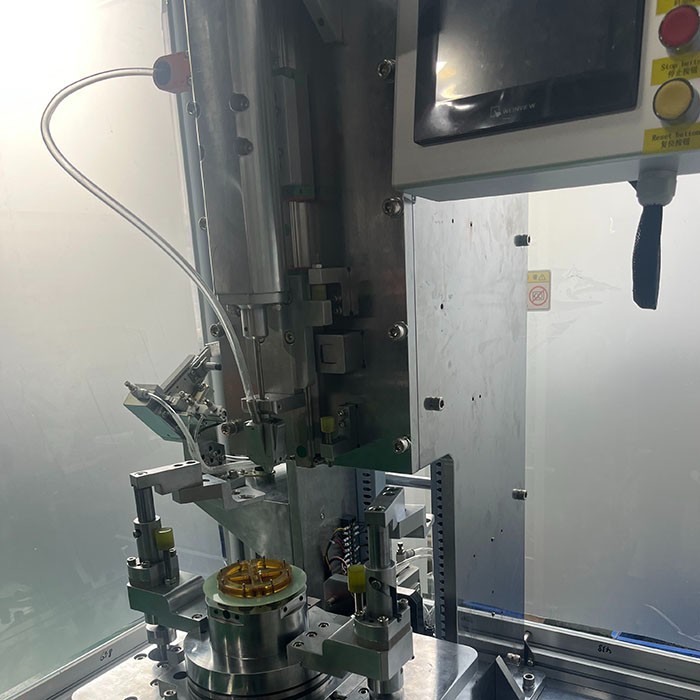

Fully Automatic Rivet Feeding & Pressing Machine
Rivets Pressing System
After the chuck receives the rivet, the electric cylinder presses down while carrying the chuck to the riveting position.
Equipment Features
- Fully automatic PCB riveting machine with vibratory bowl feeder for stable and automatic hollow rivet feeding.
- Adopts high-precision servo electric cylinder for accurate and controllable precision riveting force and stroke.
- Equipped with custom fixture to ensure stable positioning of PCB and substrate.
- Automatically completes feeding, positioning, and riveting in one cycle, ensuring firm assembly between PCB and substrate.
- Suitable for mass production with high efficiency, stable performance, and easy operation.
We have a professional engineering design team that can evaluate your special product assembly requirements and provide customized solutions.
Contact us now to cut costs and boost efficiency in production.
