Hot Melt Glue Dispensing Machine for Product Housing Application Video

Hotmelt adhesive Dispenser Introduction

01.

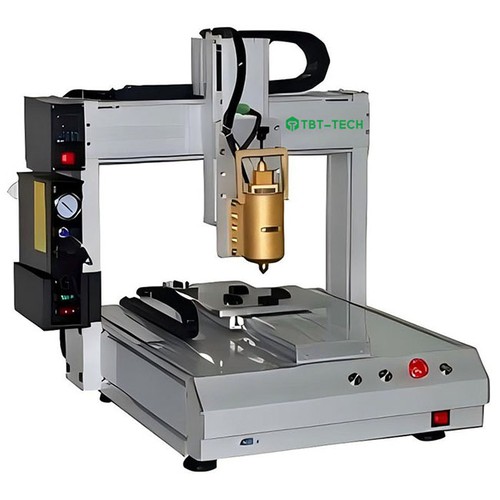

30CC Hotmelt Glue Dispenser

The 30CC Hot Melt Glue Dispensing Machine is a precision dispensing device designed for small-volume, high-accuracy adhesive application, with the 30CC syringe as its standard glue container. It is ideal for small-batch, fine dispensing scenarios across multiple industries.

02.

5L Hotmelt adhesive Dispenser

The 5L Hot Melt Glue Dispensing Machine is a high-efficiency adhesive application device engineered for medium-to-large batch production. Featuring a 5-liter glue hopper (core component for bulk hot melt adhesive storage), it is compatible with mainstream solid hot melt adhesives such as EVA, PUR, PO, including hot melt glue sticks and hot melt glue granules.

Equipment Parameters

Model	TBT331-HM	TBT441-HM	TBT551-HM	TBT661-HM
Machine Size	L624W612H648mm	L724W713H648mm	L824W813H648mm	L924W913H648mm
Weight	55KG	60KG	65KG	70KG
Working Range: XYZ	300300100mm	400400100mm	500500100mm	600600100mm
Maximum Moving Speed	X,Y 600-800mm/s,Z 400mm/s	X,Y 600-800mm/s,Z 400mm/s	X,Y 600-800mm/s,Z 400mm/s	X,Y 600-800mm/s,Z 400mm/s
Max.load X&Y-/Z(kg)	10kg/5kg	10kg/5kg	10kg/5kg	10kg/5kg
Repeated accuracy	士0.02mm	士0.02mm	士0.02mm	士0.02mm
Working Valtage	AC220V/110V 50-60Hz	AC220V/110V 50-60Hz	AC220V/110V 50-60Hz	AC220V/110V 50-60Hz
Power	0.65kw	0.65kw	0.65kw	0.65kw
Working Air Pressure	0.4 to 0.8 Mpa	0.4 to 0.8 Mpa	0.4 to 0.8 Mpa	0.4 to 0.8 Mpa
Drive Method	Motor + synchronous belt + linear guide	Motor + synchronous belt + linear guide	Motor + synchronous belt + linear guide	Motor + synchronous belt + linear guide
Dispensing cartridge	30CC heating pot / 5L hotmelt tank	30CC heating pot / 5L hotmelt tank	30CC heating pot / 5L hotmelt tank	30CC heating pot / 5L hotmelt tank
Heating range	Room temperature to 220C°	Room temperature to 220C°	Room temperature to 220C°	Room temperature to 220C°
Files Storage	Around 1000 files	Around 1000 files	Around 1000 files	Around 1000 files
Programming Mode	Teach Pendant	Teach Pendant	Teach Pendant	Teach Pendant
Dispensing Path	Dot/Line/Arc/Circle	Dot/Line/Arc/Circle	Dot/Line/Arc/Circle	Dot/Line/Arc/Circle
Working environment	-5~40℃,humidity 20%~95%	-5~40℃,humidity 20%~95%	-5~40℃,humidity 20%~95%	-5~40℃,humidity 20%~95%

Key Features of 30CC hotmelt glue dispenser

1. Precision & Minimal Waste: It delivers a minimum dispensing volume of approximately 0.01ml, with neat glue break-off to avoid stringing and overflow, suitable for narrow borders and tiny components.

2. Fast Glue Changeover: The 30CC syringe enables plug-and-play operation, facilitating quick switching between different adhesive types and meeting the needs of multi-variety small-batch production.

3. Flexible Configurations: Available in handheld, semi-automatic, and 3-axis fully automatic versions, it can be seamlessly integrated into production lines for either standalone operation or automated assembly.

4. Stable Temperature Control: Equipped with dual-zone heating (barrel + nozzle), it maintains consistent adhesive viscosity and prevents nozzle clogging

various types of Glue dispensing valves

This system supports configurable dispensing valves tailored to adhesive properties (viscosity, thixotropy, curing requirements) and application needs:
▶ High-viscosity: Piston metering valves (stable extrusion under 50-200 bar)
▶ Low-viscosity: Needle/spray valves (μm-level precision)
▶ Thixotropic/reactive: Shear-sensitive diaphragm/heat-controlled pinch valves

HOT MELT ADHESIVE VALVES

Suitable for hot melt adhesives/granules/glue sticks/glue block

SPRAY VALVES

Suitable for liquid, ink, electrolyte, grease, solvent, etc., medium and low viscosity range fluids

SYRINGE DISPENSING

Suitable for all types of glue

SILICONE VALVES

Suitable for silicone, glass glue, grease

NEEDLE VALVES

Suitable for lower viscosity glue

SUCTION BACK VALVES

Suitable for glue with high viscosity

Easy Programming

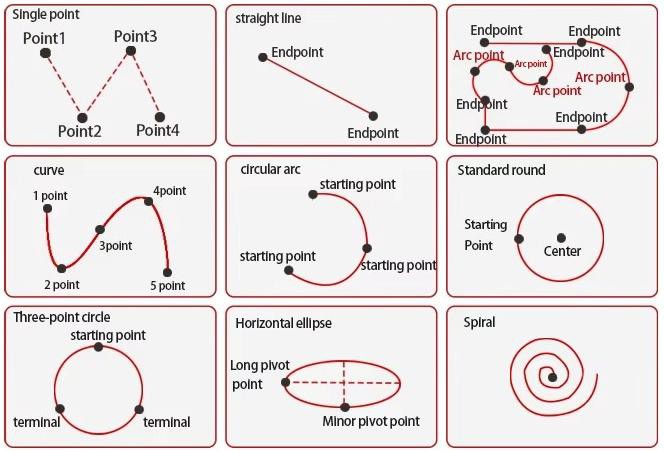

Programming1

It has the function of drawing points, lines, arcs, circles, and irregular curves to continuously tween the input program, and supports three-dimensional dispensing

Product Features

The glue pouring robot allows for fine control over adhesive placement, such as perfect beads, repeat timed dots, or component potting. Programming is straightforward with a teaching pendant. Even intricate patterns can be generated fast.
Accurate fluid placement and volume assure no waste, mess, or errors.
High speeds are obtained, decreasing the time spent hand-applying adhesives.
Replace human labor and reduce labor costs.
The dispensing amount can be adjusted, such as the gluing speed, the dispensing time,and the gluing stop time.

Our Certification

Our Automatic Screw Fastening Machine, Automatic Soldering Machine and Automatic Glue Dispensing Machine have successfully obtained the NB-CE certification issued by an authoritative EU institution. This certification holds great value, and its review process is extremely rigorous, covering in-depth evaluations of multiple dimensions such as product safety standards, environmental protection requirements, and quality control systems. Obtaining this certification fully demonstrates that our products have met the stringent standards set by the European Union in all performance indicators, and they are qualified to be sold smoothly in the EU market and even globally. It powerfully showcases our outstanding capabilities in product research and development, production processes, and quality control.

CE Certification

Honor Certificates1

Our Service

Assist customers in analyzing product projects and offer suitable and low cost solutions.
Offer free sample testing.
Provide shipping/delivery information inquiry service.
Provide a one - year warranty and promise lifelong maintenance.
Ensure a 24 - hour response time via email or other communication channels.
